Step1: import FormBuilder, FormGroup , FormControl in controller

             import { FormBuilder, FormGroup, Validators, FormArray, FormControl, NgForm } from '@angular/forms';


Step2: declare FormGroup & orderItems variables



                  orderForm: FormGroup;
                  orderItems: any;




Step 3: injust FormBuilder into constructor()

            constructor(private fb: FormBuilder){ }


Step4: define orderForm

              this.orderForm = this.fb.group({
                    'id': [''],
                    'order_date': [''],
                    'customer_id': [''],
                    'orderItems': this.fb.array([ ]),
              });



Step5: define orderItems

              createItemFormGroup(): FormGroup {
                      return this.fb.group({
                          orderId: [''],
                          itemCode: [''],
                          itemName: [''],
                          price: ['']

                      });
                  }


Step6: add the multiple row to the orderForm

                  onAddRow() {
                    this.orderItems = this.orderForm.get('orderItems') as FormArray;
                    this.orderItems.push(this.createItemFormGroup({}));
                  }


1) createItemFormGroup() is defined in Step5
2) onAddRow() is called from html(View)

Step7: remove item

                    onRemoveRow(rowIndex: number) {
                      this.orderItems.removeAt(rowIndex);
                  }


onRemoveRow() is called from html

Step1: add form tag

                  <form [formGroup]="orderForm" (ngSubmit)="onSubmit()" autocomplete="off">
                      ...
                      ....
                  </form>

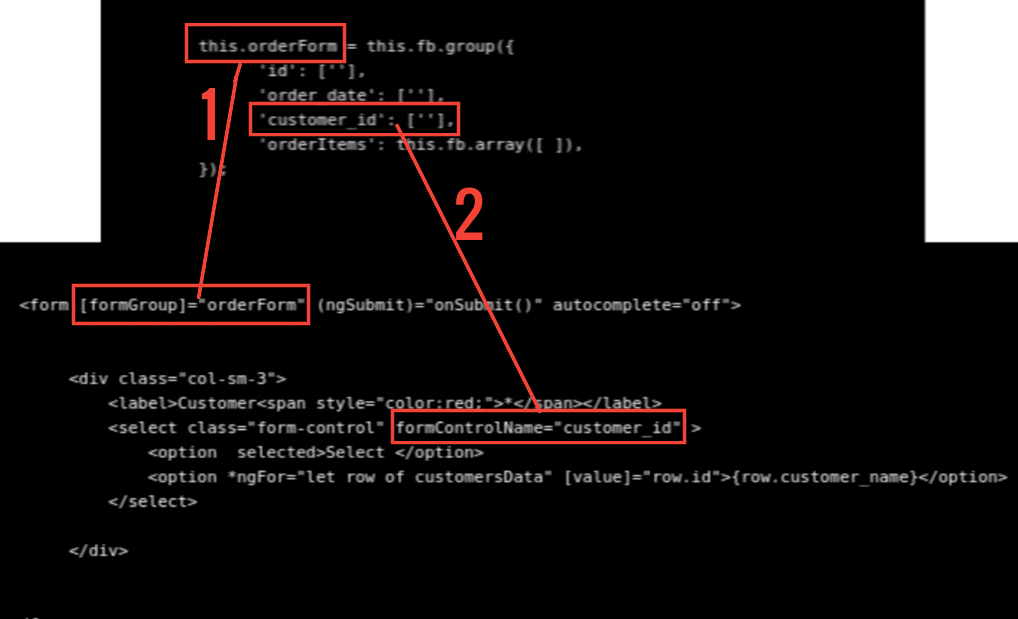

Step2: add form elements

Add form elements and link with formGroup

Code



                 <form [formGroup]="orderForm" (ngSubmit)="onSubmit()" autocomplete="off">


                      <div class="col-sm-3">
                          <label>Customer<span style="color:red;">*</span></label>
                          <select class="form-control" formControlName="customer_id" >
                              <option  selected>Select </option>
                              <option *ngFor="let row of customersData" [value]="row.id">{row.customer_name}</option>
                          </select>

                      </div>


                </form>

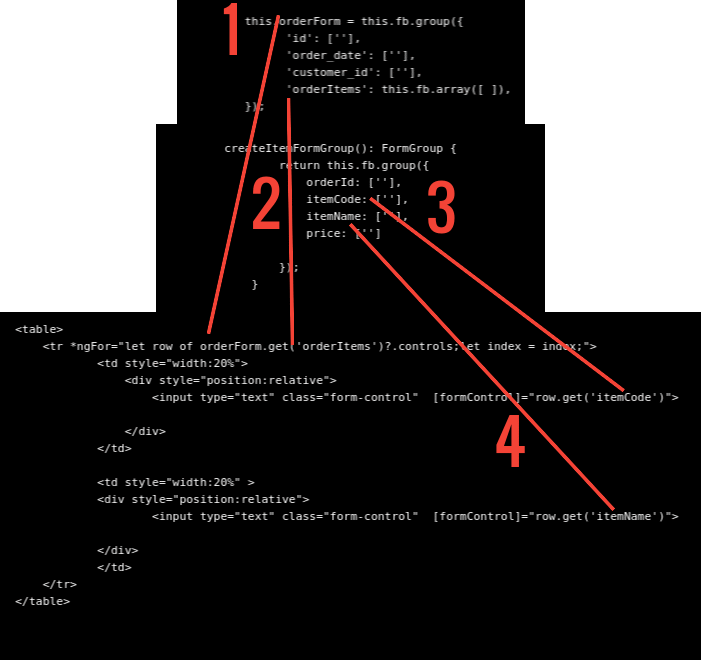

Step 3: add multiple row elements

1) looping the orderItems : *ngFor="let row of orderForm.get('orderItems')?.controls;let index = index;"
2) link formElements in the loop : [formControl]="row.get('itemCode')"

Code

                    <table>
                        <tr *ngFor="let row of orderForm.get('orderItems')?.controls;let index = index;">
                                <td style="width:20%">
                                    <div style="position:relative">
                                        <input type="text" class="form-control"  [formControl]="row.get('itemCode')">

                                    </div>
                                </td>

                                <td style="width:20%" >
                                <div style="position:relative">
                                        <input type="text" class="form-control"  [formControl]="row.get('itemName')">

                                </div>
                                </td>
                        </tr>
                    </table>




Step 4: add button to append new row

                <button  class="btn btn-sm " type="button" (click)="onAddRow()"><i class="fa fa-plus-circle"  ></i>&nbsp; Add New Item</button>



Step5 : add button to delete a row

                <i  class="fa fa-times" (click)="onRemoveRow(index)" id="remove_{index}" style="display:block"></i>Delete


set/get multi-row variables based on index in components

                //set
                ((this.itemForm.get('addItemsRequests') as FormArray).at(index) as FormGroup).get('itemCode').patchValue('123');

                //get
                var code = this.itemForm.get('addItemsRequests')?.value[rowIndex].itemCode;




Loop the multi-rows in component (set / get in the loop)

                let orderItems=((this.itemForm.get('addItemsRequests') as FormArray));
                let sum=0;
                orderItems.controls.forEach(x => {
                    // get
                    var itemtotal=x.get('total').value;

                    sum=sum+parseFloat(itemtotal);
                    this.orderForm.get('grandTotal').patchValue(sum);

                    //set
                    x.patchValue(
                            {total:120}
                        );
                });


Pre-populate data into multi-row form

FormGroup



                     this.orderForm = this.formBuilder.group({
                        sohdrId: [0],
                        orgId: ['', Validators.required],
                        customerId: ['', Validators.required],

                        salesOrderDtls: this.formBuilder.array([ ])
                    });



Pass object to formArray

                createItem(item:any): FormGroup {

                    return this.formBuilder.group({
                        itemId: item.itemid,
                        orgId:this.orgId,
                        itemCode:[item.itemCode, Validators.required],
                        itemName:[item.itemName],
                        quantity: [item.qtyRequired, Validators.required],
                        expectedDate: [item.expectedDate],
                        basePrice:item.basePrice,
                        total:[item.total, Validators.required],
                        uomName:item.uomName,
                        minOrderQty:item.minOrderQty,

                    });
                  }


                  //pass empty object for new entry
                  addItem(): void {
                    this.items = this.orderForm.get('salesOrderDtls') as FormArray;
                    this.items.push(this.createItem({}));
                  }




Loop the API data

                this.orderService.getDetails(this.orderId,this.orgId)
                    .subscribe(data => {

                                //start loop
                                data.salesOrderitems.forEach(row => {

                                                //get formArray
                                                this.items = this.orderForm.get('salesOrderDtls') as FormArray;

                                                this.items.push(this.createItem(
                                                {
                                                    itemid:row.itemid,
                                                    itemCode:row.itemCode,
                                                    itemName: row.itemName,
                                                    basePrice:row.basePrice,
                                                    uomName:row.uomName,
                                                    minOrderQty:row.minOrderQty,
                                                    expectedDate:expectedDate,
                                                    qtyRequired:row.qtyRequired,
                                                    total:total

                                                }
                                                ));



                                });

                    });


Clear FormArray item

             (this.orderForm.controls['salesOrderDtls'] as FormArray).clear();
